Presentation

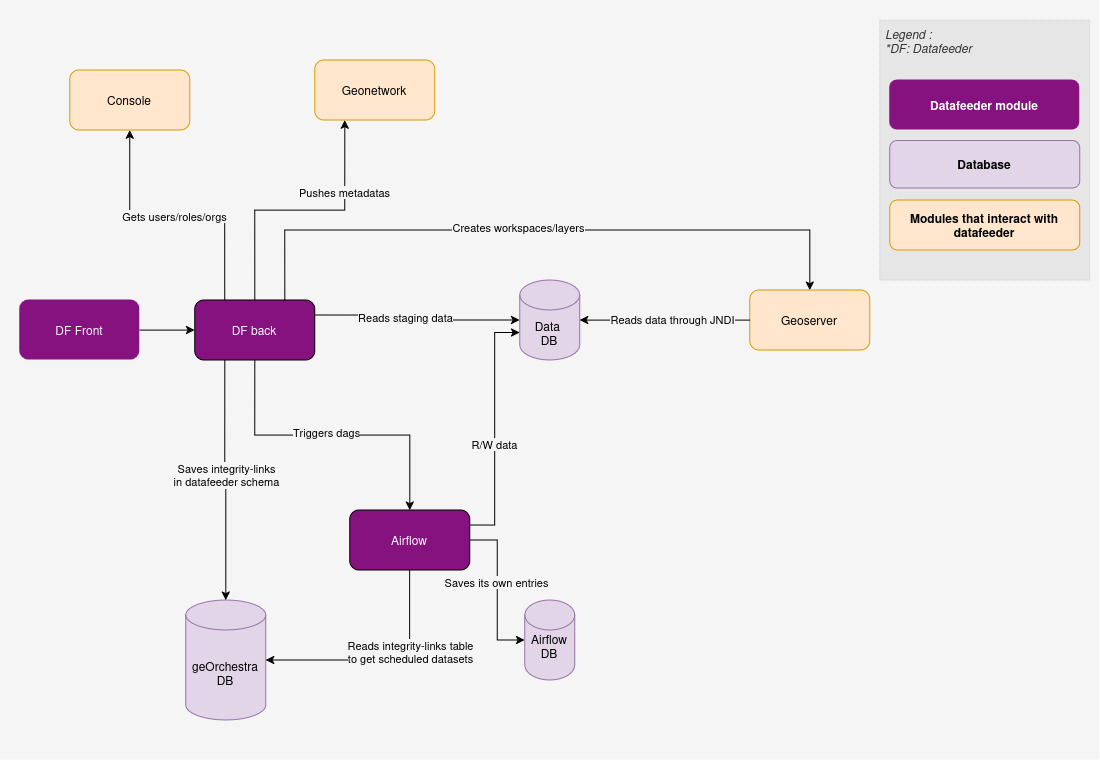

Component architecture

datafeeder/
├── apps/
│   ├── backend/          # FastAPI REST API — ingestion orchestration & lifecycle
│   ├── frontend/         # Angular SPA — user interface
│   └── elt/              # Airflow DAGs — data processing pipelines
├── libs/
│   ├── data_manipulation/  # Shared Python lib — ingestion, transformation, GeoServer I/O
│   └── ai/                 # Shared Python lib — AI provider integrations
├── Makefile
└── docker-compose.yaml
  • Backend (apps/backend/): FastAPI application, owns the datafeeder PostgreSQL schema, exposes the REST API consumed by the frontend and by Airflow (via webhook callbacks).
  • ELT (apps/elt/): Airflow DAGs that do the actual data processing. No direct HTTP dependency on the backend at runtime — they share the database and call back to the backend through webhook URLs passed as DAG parameters.
  • Frontend (apps/frontend/): Angular 20 SPA, talks exclusively to the backend REST API.
  • Shared library (libs/data_manipulation/): imported by both the backend and the ELT DAGs — source-specific ingestion, the transformation pipeline, GeoServer write helpers, shared models.

Dataset lifecycle

A dataset (an IntegrityLink record) goes through the following pipeline:

POST /staging        → creates IntegrityLink, triggers staging_dag (source → staging table)
                         success: records retrieve time
                         failure: deletes IntegrityLink + staging table

POST /process        → creates GN metadata record, triggers process_dag (staging → final table, with transformations)
                         success: publishes GeoServer layer, updates GN metadata record
                         failure: drops partial final table

(cron) ingestion_<uuid> → re-triggers process_dag on schedule (re-fetches from original source)

DELETE /integrity-link/{id} → unpublishes GeoServer layer, deletes GN record, drops tables, deletes row

Two DAGs implement the pipeline:

  • staging_dag: ingests raw data from a source (FILE, URL, FTP, DATABASE, API/WFS/OGC) into a staging PostgreSQL table
  • process_dag: applies transformations (column mapping, projection, filters) and writes to the final table; supports re-ingestion from source or reuse of an existing staging table

Both DAGs accept success_callback_url / failure_callback_url parameters and call them on completion, so the backend can update the dataset's status asynchronously without polling Airflow.

Minimal runtime

The minimum viable deployment requires:

  • Backend + its PostgreSQL database
  • Airflow with the ELT DAGs deployed

GeoServer and GeoNetwork complete the picture by publishing the layer and its metadata record.

The frontend is optional: the backend REST API is fully functional independently (see the interactive docs at /docs on the backend's URL).
